PATTERNS & CHARTS
PATTERNS & CHARTS
Printed Canvas

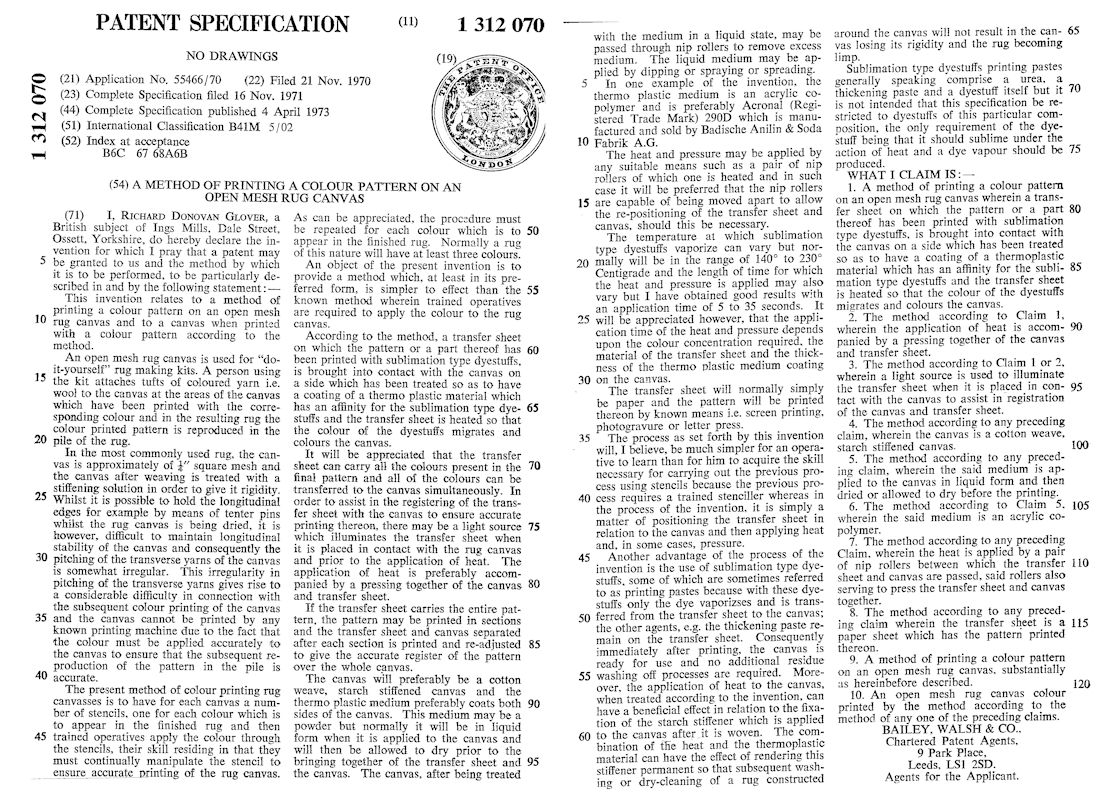

The easiest way to make rugs is using a printed canvas, but many of the modern designs don't appeal to me. I'm not a fan of "picture" rugs or cartoon-style patterns, though I'll finish these for other people. If I find one of those patterns in a charity store I use the contents for my own pattern and mix the usually acrylic yarn with wool to get a better pile. Printed canvases come with or without yarn and you can often find unfinished rugs for sale, in which case you may need to match the colours or rework sections of it to overcome discontinued shades.
/P>
Plain Canvas With Overlaid Guide

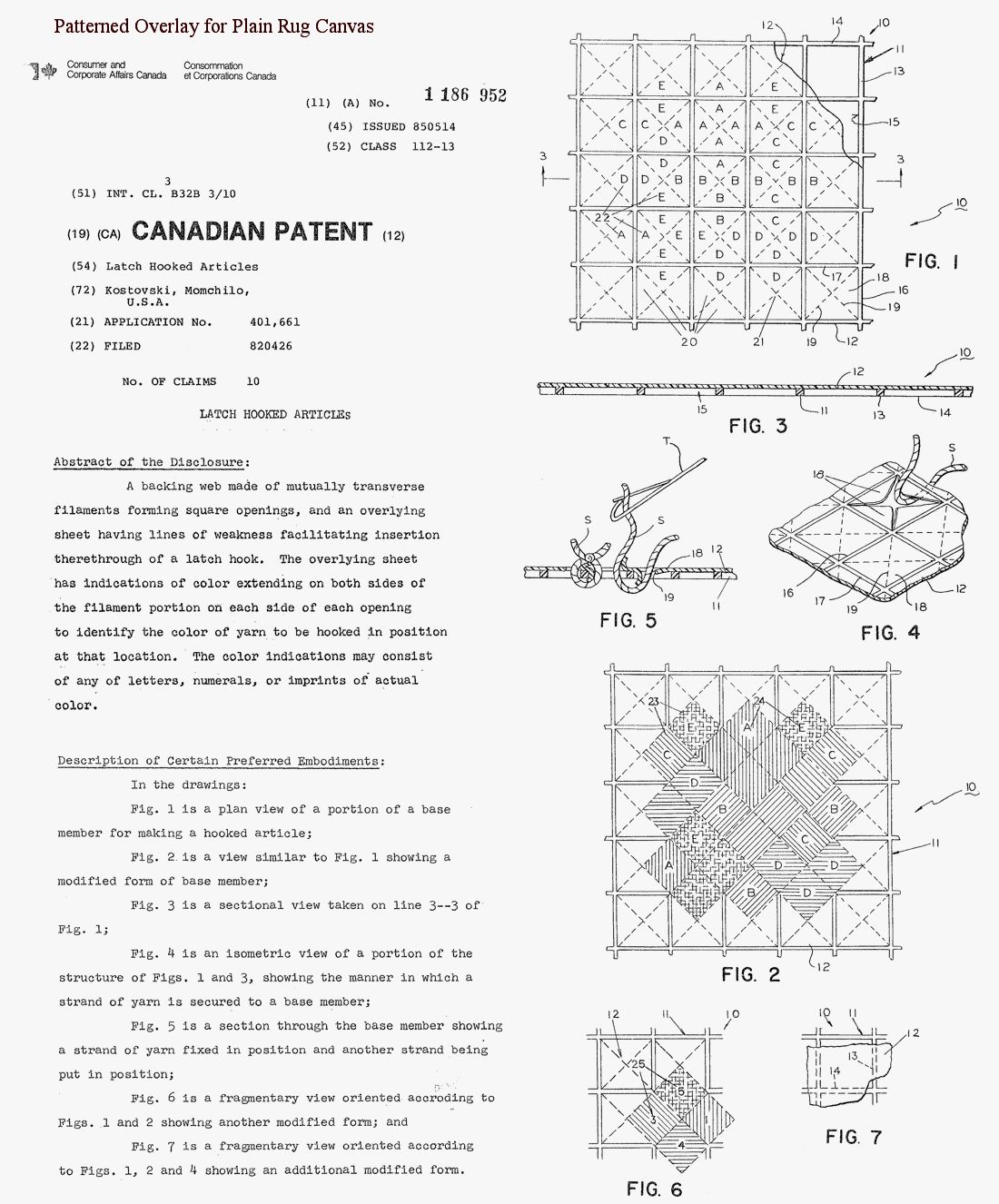

Because it was difficult to accurately print an open mesh canvas, and because working a plain canvas from a separate pattern (like counted cross-stitch) could introduce errors, Shillcraft introduced a full sized paper chart that could be clipped to the canvas. There wwere two variations: a perforated paper chart or a chart with tear-off strips.
The Exacta-Graph, (lower part of the clipping below) was a sheet of charted paper, the same size as the canvas, clipped to a plain canvas. The rugmaker hooked THROUGH perforations the paper. It had the advantage of being more accurate and easier to read than a printed canvas, but it had to be perfectly aligned with the canvas threads. Readicut advertised the Exacta-Graph in the 1970s.

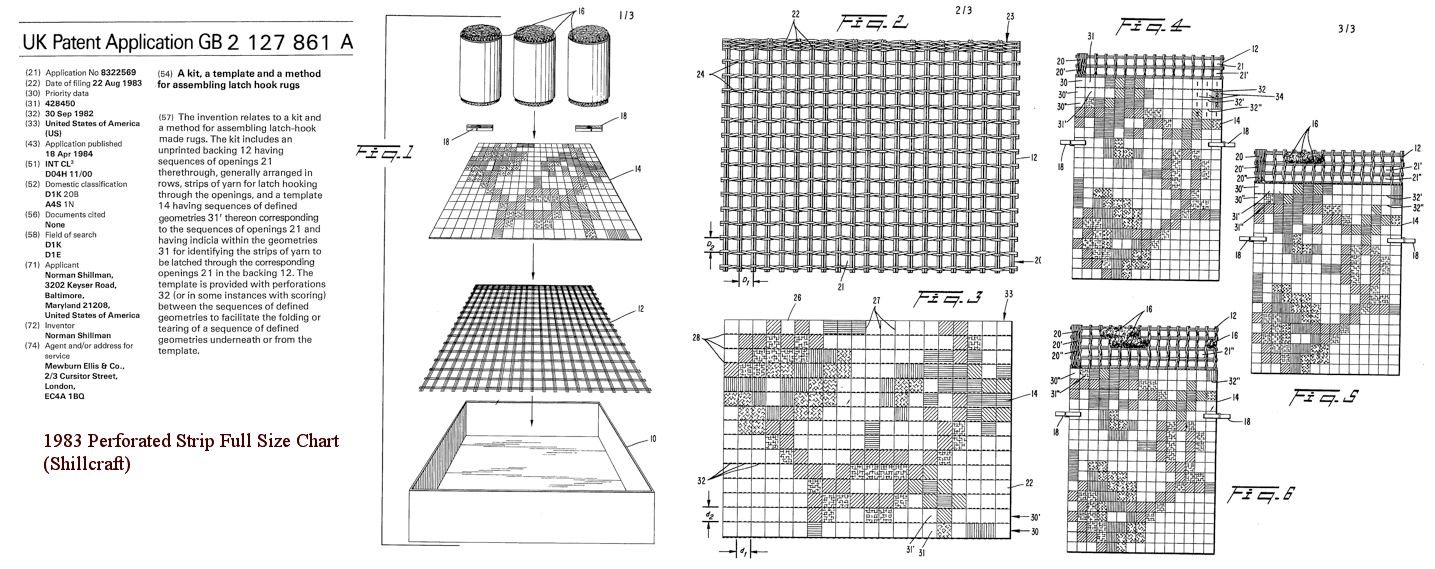

The perforated strip method also involved clipping a full-size chart onto the canvas and working a row at a time. The paper chart was scored/perforated below each row of the pattern. The rugmaker knotted the row above the top edge of the chart, then tore off top strip of the chart so that the next row could be worked. This meant the rugmaker did not have to glance from a separate pattern to the canvas, counting knots/holes as necessary, and back again.
A drawback to these methods is that paper is prone to becoming flimsy or tearing as it is handled. These overlaid charts could only be used once. A conventional chart can be used multiple times.
Separate Charts
The second most common method uses rug charts. Patons used to issue a magazine containing rug charts (Rugcraft) and these days you can buy and download rug charts from websites. Old rug charts may be in black and white (using symbols for colours) or colour. Most of the original shades will have been discontinued, but Iriss and Anchor produce a wide range of shades that give good results, or you could pick your own colours e.g. work a rug in blues instead of browns. You may also have to work out the quantities required, or convert from weights to numbers of pre-cut packs. Though packs have a metric weight on them, it won't exactly match the wool-weight (possibly in ounces) used when the chart was printed. Iriss produce balls or rug wool by weight.
 |
 A nice Italian booklet of patterns that can be worked in cross-stitch, tapestry-stitch (half-cross or tent stitch) or rug-knotted. |
Counted Cross Stitch or Tapestry Patterns
Cross-stitch patterns can be adapted for rugs, bearing in mind that the deeper pile of a rug will make the pattern less crisp. Cross-stitch charts may need to be simplified to use fewer colours or omit some of the fine detail that won't show to good effect on a rug. These can also be downloaded, often for free, or bought in books and magazines. There is also software available to generate a counted cross-stitch pattern from a drawing or photo, but you'll probably need to simplify the number of colours used. My "Lynx" rug and "Affy" rug were made in a similar way, but by hand. Most cross-stitch patterns will work with 4.5 hpi and 5 hpi canvases.
When converting a cross-stitch pattern, consider the size of canvas it will need! Count how many stitches wide and high and assume 3.3 stitches per inch (3.3 hpi canvas) to give you the height and width of canvas required (you'll then have to convert to metric it s best to round up to a whole number than round down). Then add an extra 10 holes at each cut end for turning over so the canvas doesn t fray. The size of the worked area can be daunting. Personally I'm happy to spend several years working on-and-off on a 2 metre x 2 metre rug for my front room, but it's easy to run out of steam (and money) if you misjudged the size. I use cross-stitch patterns for my floral rugs as a design intended for the corner of a napkin makes a nice sized rug motif.
A pattern 100 stitches wide worked on 3.3 hpi canvas will turn out 100 / 3.3 = 30.3 inches wide.
Add another 10 holes (3.3 inches) to each cut edge for turning over.
You'll need a canvas 30.3 + 3.3 + 3.3 = 36.9 inches wide.
Repeat for length.
Rugmaking Kits

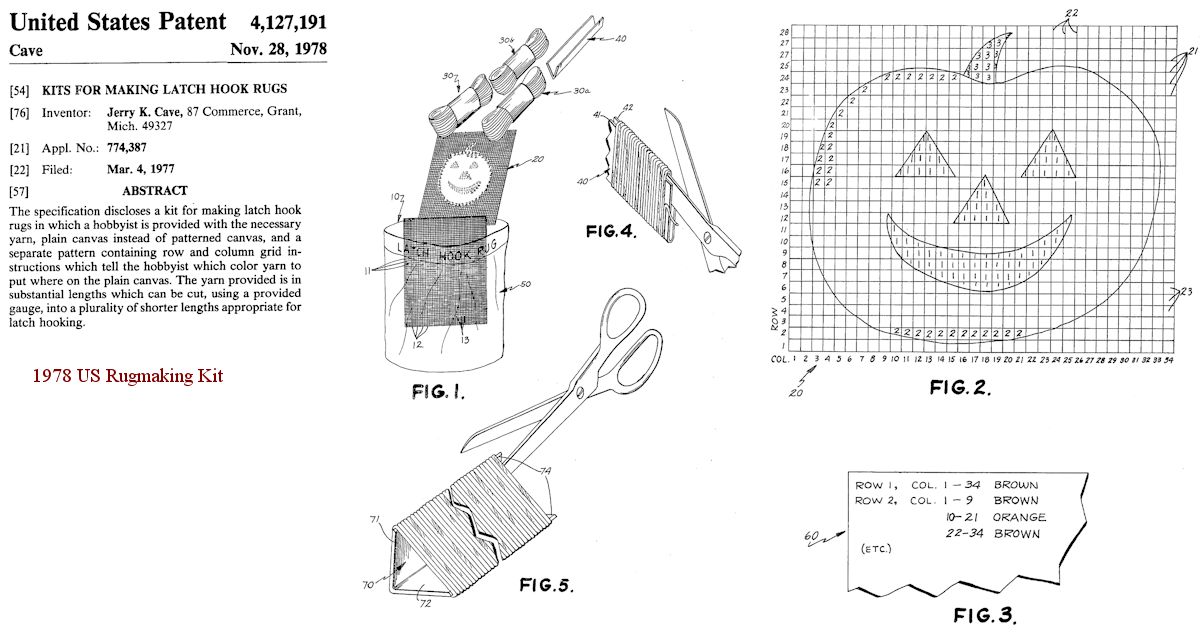

Many British rug supplies companies produced kits or "outfits" so the home rugmaker could buy everything needed for making a latch-hook rug (the design chosen from a catalogue): canvas (either printed or plain with an accompanying chart), the correct amount of wool (either skeins with wooden cutting guide, or pre-cut wool), and one or two latch hooks. For shaped rugs, binding was included for turning over the edges. This was an alternative to buying wool in stages (which allowed a rugmaker to spread the cost over a number of weeks). I can't find a UK patent for boxed rug kits, possibly because it was a common sense approach, but in the USA the idea was patentable.
Rather than a chart similar to counted cross-stitch, the above patent indicated a chart with the pattern drawn in outline (similar to a rug hooked on burlap/hessian, something already familiar to US hobbyists) with an accompanying guide that detailed the wool colours much like a knitting/crochet pattern details the sequence of stitches in a patterened item.
Alternative Method To Charted Pattern
For my Lynx rug and Affy cat rugs, I drew a simplified design from a photograph. I overlaid a grid pattern on the paper design; each square of the grid equalled 10 holes on the canvas. This matched the guide-threads on the canvas. I then used knitting wool to "draw" the design on the rug and had a corresponding key to the colours in each region.
Original pattern drawn on paper with a colour guide, noting the wool brands I was buying!
Stages in making the rug
I had to break the rule of working row-by-row when working this rug, so I could fine-tune the design as a I went.
Completed rug with the cat that inspired it
Other Charts and Patterns
Scandinavian Ryagarn Rugs use longer, thinner, pieces than Readicut-style rugs. The instructions say to use three strands at once, sometimes three of the same colour, sometimes a 2-to-1 mix of colours. The result is a shaggy rug where colours blend into each other. The charts can be used with conventional rug wool, but without the shag-pile effect the simple designs can be rather boring.
Rug Canvas and Rya Canvas Compared
Cable Wool charts were designed for a thick grade of wool and using alternate holes in the canvas. This gave a chunky rug like the "coral" or finger rugs today. If you use a cable wool chart for conventional rug wools, you will use every hole, instead of alternate holes, so the design may be disappointing unless you use a bit of creativity and convert the chart for use with ordinary rug wool (such as filling in the unused holes).
