The charts on this page can be downloaded (right click and "save as") full size for use in tutorials and web-pages. This page doesn't go into inheritance genetics in depth, but is intended to depict the range of conformations in domestic cats. This page may load slowly due to the number of downloadable images.

The explanatory text and the charts are in the public domain for breeders. Please credit the source if you reproduce the contents.
Note: I’m aware that Messybeast information, including novel terminology, was reproduced by deviantart’s “cedarseed” without attribution and that hir successor, “majnouna”, objects to me creating my own charts from my own information. Depicting my own content pictorially is not plagiarism as alleged by said individual, but is a legitimate use of my own collated data presented in standard textbook format.

1. Body and Face

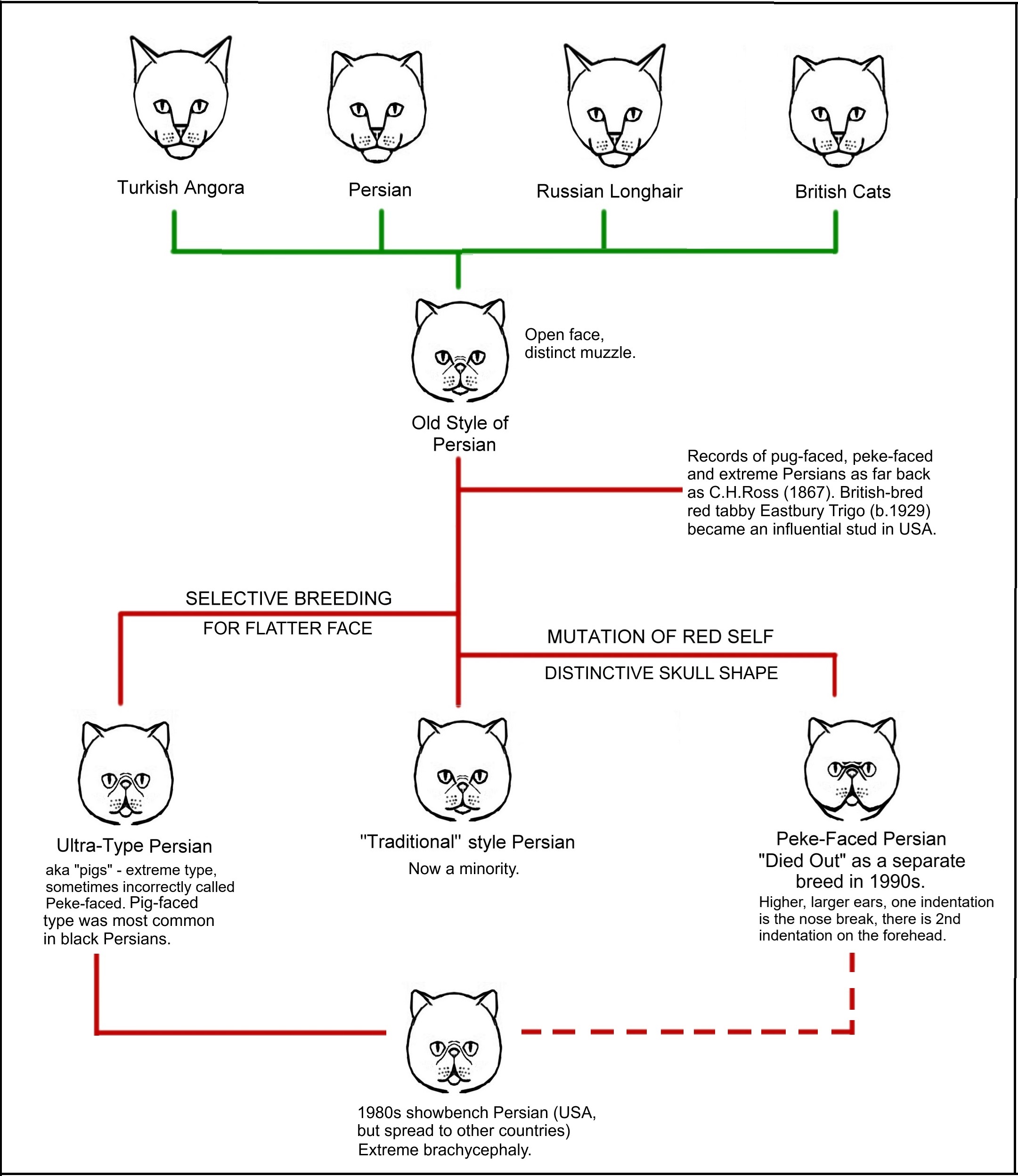

In general, the body type ranges from Foreign (aka Oriental) to Cobby (Persian/Exotic) with a range of shapes inbetween. There are breed-specific variations on each theme e.g. modified foreign. The terms petite and substantial are sometimes used in relation to the intermediate body type. As well as the main body types, there are several other variations such as the tucking up of belly skin or shortening of the legs.

cat conformation diagram chart

cat conformation diagram chart

2. Eyes

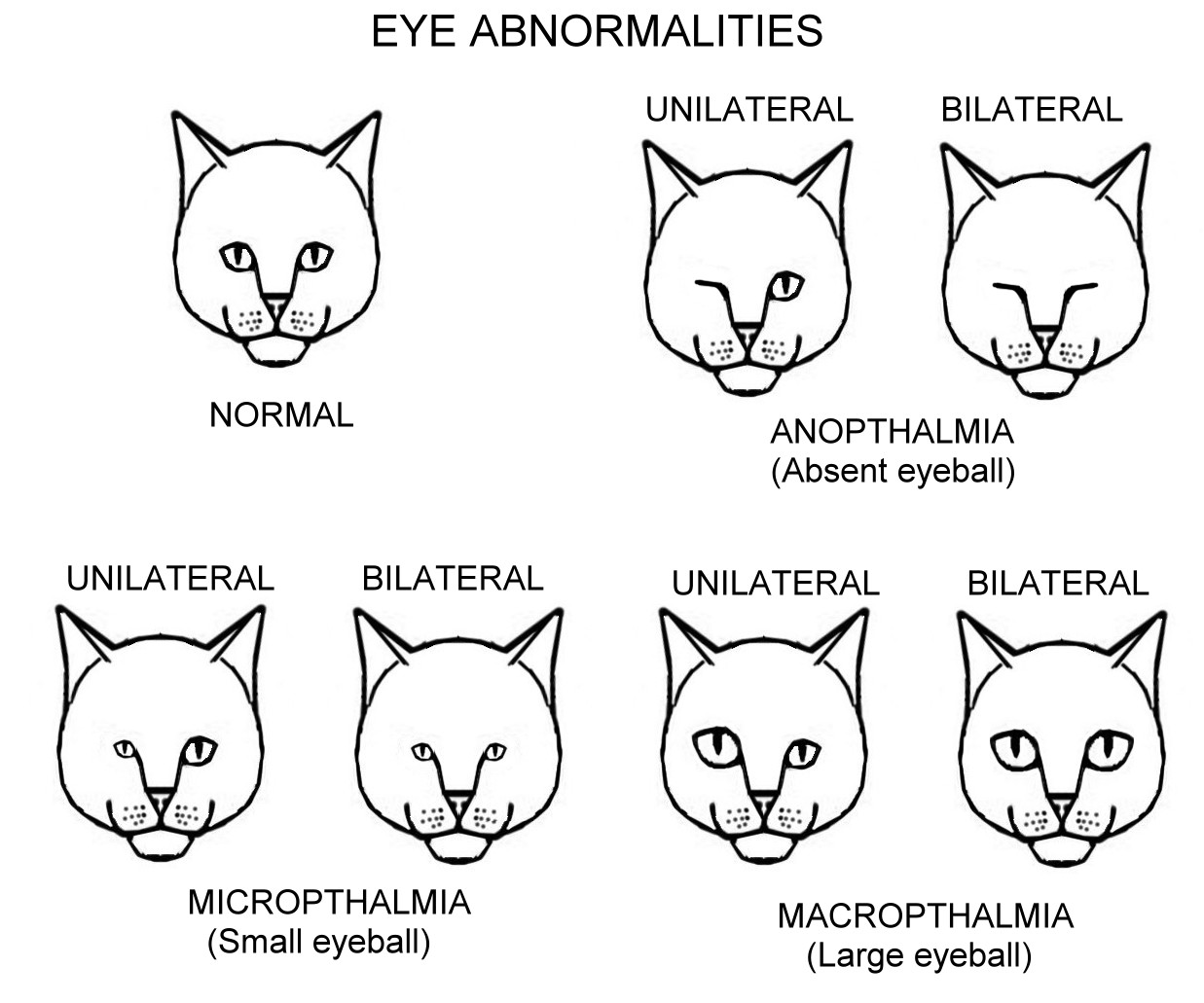

The shape of the eyes is due to the eyelids and other soft tissues. The eyeball itself is always round, but the shape of the visible eye surface varies.

3. Ears

The ears can vary in placement on the head as well as in shape. There are also several ear anomalies such as duplicated ear flaps. The extra ear flaps are cosmetic only and not connected to the inner ear. "Floppy ears" is due to soft cartilage and has been observed in some Siberian lines; unlike curled or folded ears, floppy ears are not set in a particular shape.

cat conformation diagram chart

3. Tails

There are several tail mutations and there is variation within each mutation e.g. several lengths of tail are found in Manx cats.

4. Feet

The chart shows the normal fore-paw and several mutations. The "Patty Foot" form of polydactyly is associated with radial hypoplasia, but the "Mitten Foot" form is benign. The example show for Syndactyly has a central cleft and 2 toes, but the cleft can occur anywhere on a normal foot e.g. 3 toes on one side of the cleft and one toe on the other.

cat conformation diagram chart


The chart is very generalised regarding rexed fur. Some rex-type cats have guard, awn and down hairs affected while others have only awn and down affected. Some lack one type of hair. Rex-types include the LaPerm. Wirehair types include the Bramble.

cat conformation diagram chart

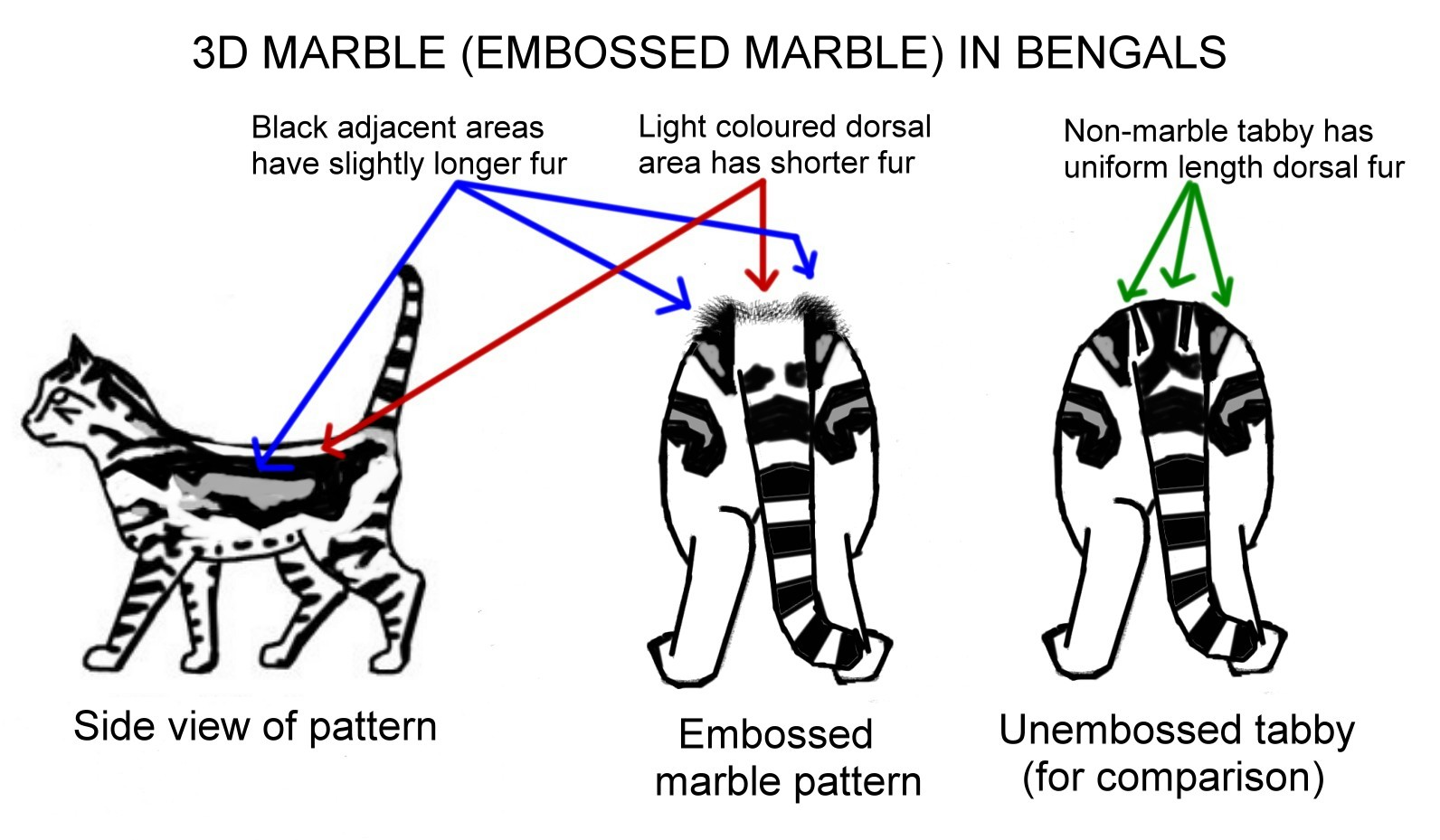

An interesting effect can occur where the pigment granules in the fur cause the texture to change. For example, solid black colour fur feel sleeker to the touch. In the marbled Bengal, the dorsal area is agouti rather than a black stripe (as in other tabbies). The fur of this agouti stripe may be shorter than the adjacent black fur of the horizontally-aligned marble pattern. This is shown below.

cat conformation diagram chart
