COLOUR AND PATTERN CHARTS
Sarah Hartwell/Messybeast.com

The charts on this page can be downloaded (right click and "save as") full size for use in breed tutorials and web-pages. This page doesn't go into inheritance genetics in depth, but is intended to depict the range of colours and patterns. Any genetics contents is extremely simplified! Similar color charts have appeared in Wright & Walters (The Book of the Cat, 1980) and in Robinson's Genetics (1977 onwards) and I've updated those with recent developments and made them freely available. The charts are laid out in the normal 2-axis format seen in textbooks: the most dominant allele is at the left (black) and in descending order of dominance to the most recessive allele on the right (cinnamon). Below that are the two dilution modifiers. The eumelanin (black) series and the phaeomelanin (red) series are alongside for comparison. In several cases, I've taken the liberty of coining terms for certain patterns for ease of describing something not formally described by a cat fancy standard (some of these terms have since been used by other people creating their own charts from my information). There are also charts of 2 sought-after patterns that haven't been confirmed in cats. This page may load slowly due to the number of downloadable images.

The explanatory text and the charts are in the public domain for breeders and can be edited as required for your own breed. Please credit the source if you reproduce the contents because as well as material from cat breed standards and genetics texts, the charts depict material from my own studies which are described (with photos) elsewhere on Messybeast.com.
Note: I’m aware that Messybeast information, including novel terminology, was reproduced by deviantart’s “cedarseed” without attribution and that hir successor, “majnouna”, objects to me creating my own charts from my own information. Depicting my own content pictorially is not plagiarism as alleged by said individual, but is a legitimate use of my own collated data presented in standard textbook format.

cat colours diagram chart

I’ve used this order of precedence for naming conventions:

1. Use existing cat fancy terminology OR

2. Use the breed developer’s terminology (e.g. Karpati, Copper) OR

3. Borrow terminology from other livestock (e.g. belted, sheeted, cobweb) OR

4. Use descriptive plain English (swirled, skunk-stripe) OR

5. For seen-once mutations, use the location where it was observed (e.g. Finnish) OR

6. Use medical term (e.g. periocular leukotrichia)

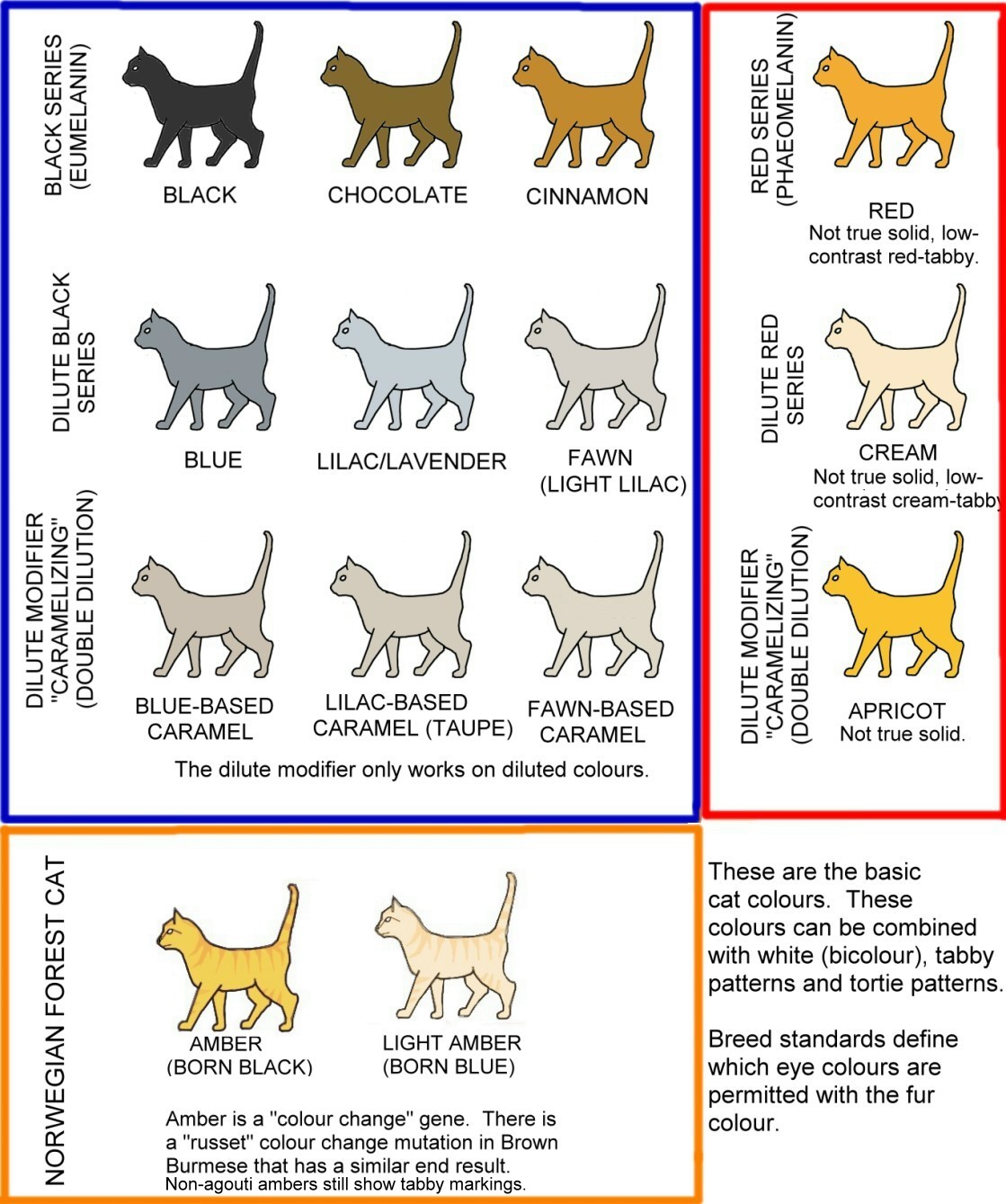

1. Self (Solid) Colours

There are 9 eumelanin-based (black-based) self colours and 3 phaeomelanin-based (red-based) self colours. The red-based colours are genetically solid, but because of the way the red pigment and non-agouti gene interact, they may have discernible tabby markings.

Self white (not shown) masks any underlying colour. The cat may be genetically black, genetically cream etc, but the presence of the white gene obscures the colour. Other self white cats are the result of extreme expression of the white spotting gene discussed later.

There are 2 late colour change genes that result in additional self colours: amber (Norwegian Forest Cats) and Russet (Burmese). These cause black pigment to gradually fade and become reddish. These charts are in a later section.

cat colours diagram chart

2. White Spotting

The white spotting gene causes variable white markings. I've depicted this on a black cat, but any colour or pattern can have white markings. Generally speaking, a cat with one copy of the white spotting gene will be anywhere from 0% to 50% white while a cat with two copies of the gene will be anywhere from 50% to 100% white as shown on the chart. White spotting is a dominant trait so it is rare that the white is not discernible due to developmental factor (it is more likely that a non-white spotted cat born to white spotted parents has not inherited a white spotting gene from either parent).

Although white spotting is depicted as a continuous series from no white through to wholly white, there are believed to be genes, not yet identified, for the white throat locket and white brisket spots. When bred together, cats with a white throat locket and/or white brisket spots do not produce cats with higher degrees of white spotting because they do not have the main white spotting gene.

cat colours diagram chart

cat colours diagram chart



cat colours diagram chart

2a. Thai White Spotting (Skunk Stripe)

This pattern is found in Thai cats and is depicted in old manuscripts and illustrations. Cats with up to 60% white also have a distinct white dorsal stripe. This marking may be present, but is less distinctive, on cats with higher degrees of white spotting where the coloured markings naturally break up. The dorsal stripe varies in width. The white tail may have one or more complete or partial coloured bands near the tail tip.

cat colours diagram chart

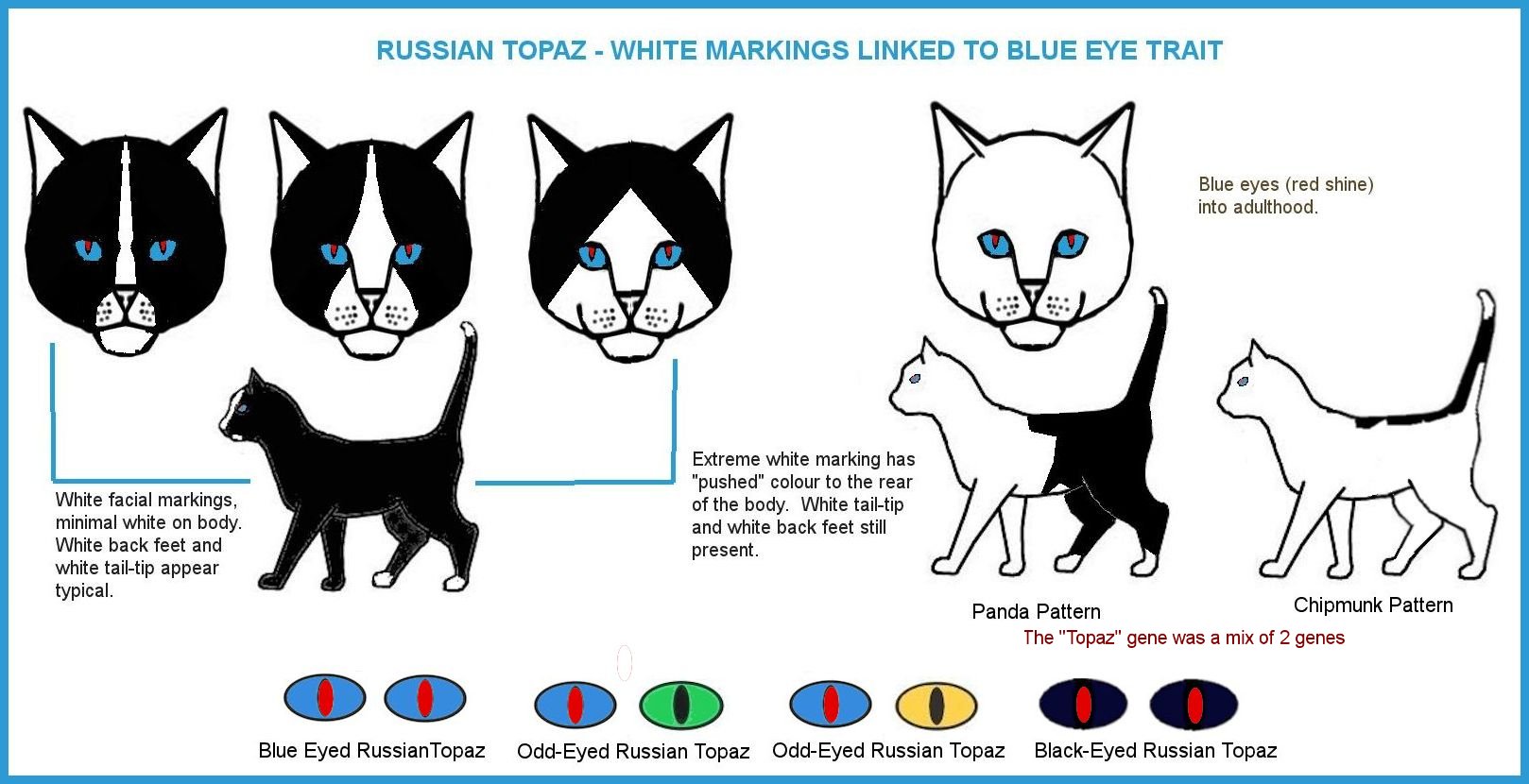

2b. Russian Topaz White Markings

topaz cat breed

2c. Other White Markings

Other white markings are not linked to the white spotting gene. Some are due to newly emerging gene mutations (e.g. the "Finnish" mutation, the roan mutation) and some are due to developmental anomalies or to illness/injury. Some of the terminology has been borrowed from other livestock that exhibits the pattern depicted.

cat colours diagram chart

2d. White Markings Combined with Tortoiseshell

cat colours diagram chart



3a. Tabbies - Patterns

The main tabby patterns are agouti (ticked/Abyssinian), mackerel, classic and spotted. Agouti (unpatterned) tabbies have ticked fur, but almost no striped markings except residual barring on the legs, tail, head and chest. Mackerel tabbies have thin striped markings while classic tabbies have blotched markings. Spotted tabbies can be due to broken mackerel stripes (in which case the spots are not so rounded) or to a spotting gene. The spotting gene breaks up the underlying mackerel or classic tabby pattern into spots. Some classic tabbies display a dark "cape" due to heavy markings; their agouti areas may be reduced to small patches on a black background.

There are also several modified tabby patterns produced by selective breeding, mutation or by crossing to a wild species. Strictly speaking, the Bengal marbled pattern should be a horizontally aligned clouded pattern inherited from the Asian Leopard Cat, but in most Bengals it is a slightly modified classic tabby pattern.

cat colours diagram chart

3b. Tabbies - Colours

The charts below show a generic pattern, but any of the tabby patterns can occur with these colours. In marbled and rosetted tabbies, the colour inside the dark markings may be richer than the background colour.

cat colours diagram chart

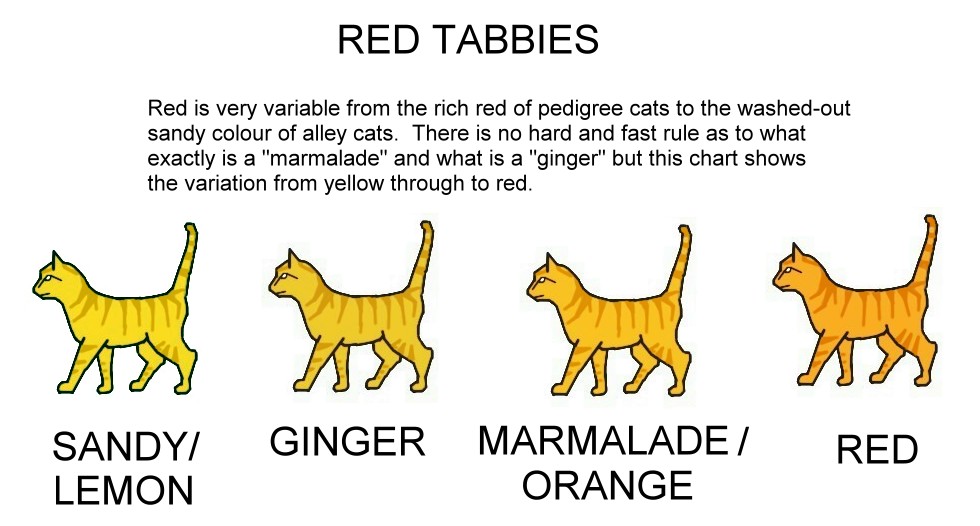

Red tabbies are variable in colour from sandy yellow (marmalade) through to the rich red found in show cats. This is due to polygenes that increase or decrease the richness of the red tones. By selective breeding for a rich colour, exhibition quality red tabbies have much deeper colours than mosr random-bred "ginger" cats.

cat colours diagram chart

3c. Ticked Tabby Colours

The standard colours manifest differently in ticked (unpatterned) tabbies.

cat colours diagram chart

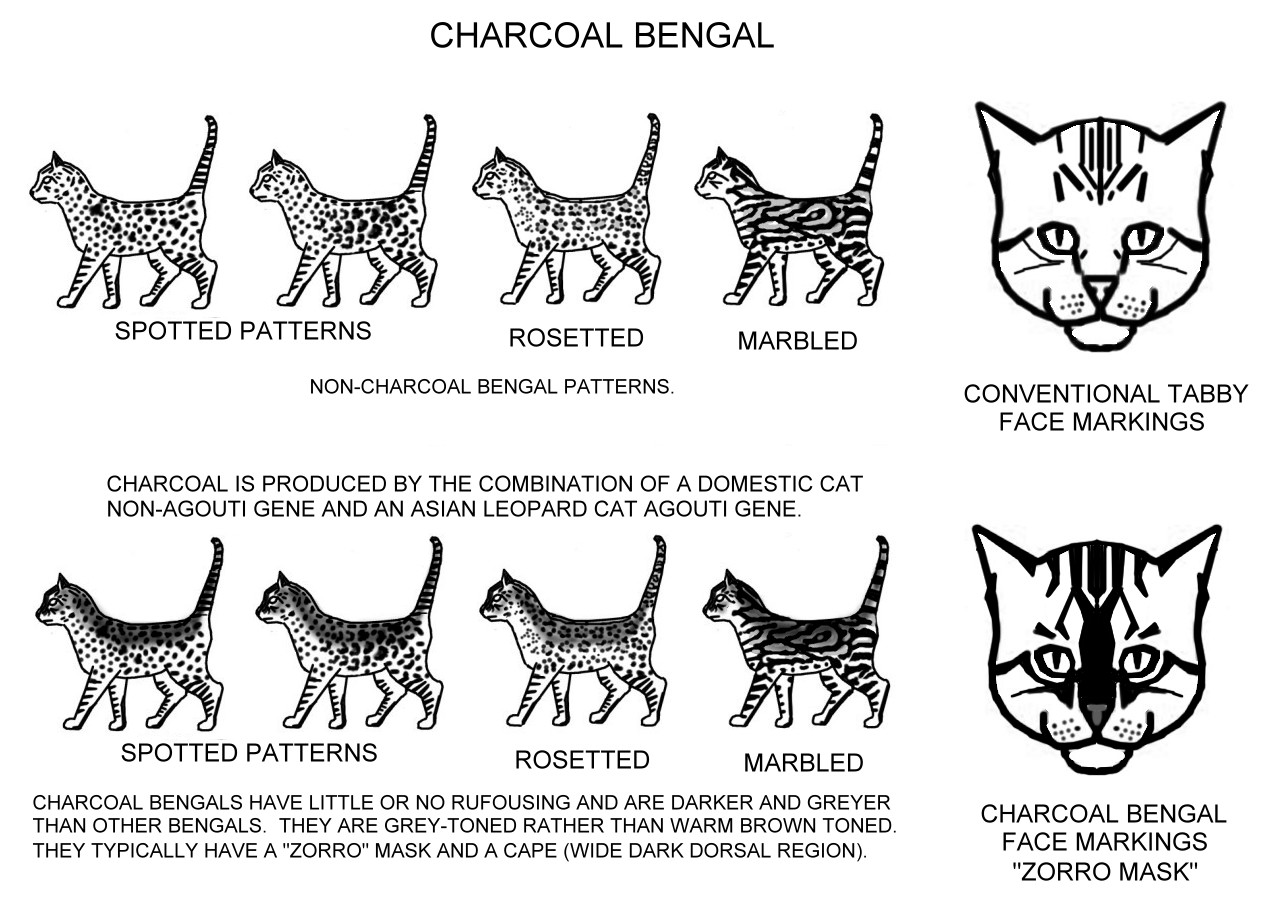

3d. Charcoal Bengal and Charcoal Savannah

An agouti gene inherited from the Asian Leopard Cat has given rise to another modified tabby pattern in the Bengal and Savannah (which has some Bengal ancestry). The charcoal pattern reduces the amount of rufousing (red tones) in the coat giving it cooler, greyer tones. It affects the markings to produce a dark nose, dark "Zorro" mask on the face and a dark cape on the back. Charcoal is a pattern, rather than a colour, and in Bengals it can be combined with silver (inhibitor), sepia, mink and snow colours (from the colourpoint series).

cat colours diagram chart

4. Tortoiseshell, Tortoiseshell-and-White (Calico)

Tortoiseshell cats have a mix of a eumelanin colour with the corresponding phaeomelanin colour. This means dense with dense as in black with red, or dilute with dilute as in lilac/lavender with cream. The phaeomelanin-pigmented areas (red, cream or apricot) may show residual tabby markings. Where there is no white spotting or a low level of white spotting, the two tortie colours tend to be well brindled (intermixed). With greater degrees of white spotting, the colours form larger, well-defined areas. This is due to the way the pigmented cells spread in the developing embryo. In North America, tortie-and-white cats are known as calico.

Because the red colour is carried on the X chromosome and requires XX (female) genetic make-up, tortoiseshell is uncommon in male cats. It sometimes occurs as a result of developmental or genetic anomalies.

cat colours diagram chart

5. Tortoiseshell Tabby (with/without white)

Where tortie and tabby patterns are combined, the cat has different colour tabby patches e.g. black/brown tabby with red tabby instead of solid colour patches. These are known as patched tabbies in Europe and torbies in North America. When white markings are present, they may be called torbico in North America.

cat colours diagram chart

6. Silver and Golden Series

Normal agouti hairs have bands of light and dark pigment corresponding to the coat colour e.g. black and brown bands for genetically black cats, red and cream bands for genetically red cats. When the silver gene is present, the light bands are pale grey or nearly white. In genetically tabby (agouti) cats, this results in a tabby or ticked pattern on a silver base. Depending on the degree of ticking, this ranges from tipped (chinchilla) to shaded to silver tabby. When the silver gene is combined with a self (non-agouti) colour, the result is smoke. Some smoke kittens may show a residual tabby pattern until they get their full adult coat.

The mechanism for golden is generally analogous to silver, but appears due to the wide band gene that lightens and brightens the background colour of agouti regions of the coat. Therefore it is debateable whether golden smokes exist. Other genes can give the impression of golden e.g. high levels of rufousing in breeds with wildcat ancestry.

6a. Silver and Golden Torties & Tabby-Torties

6b. Sunshine and "Bimetallic"

In Persians, Exotics and British Shorthairs, golden results from two copies of the recessive inhibitor gene combined with the wide band gene. In Siberians, the Sunshine colour is also inherited recessively but is not due to the inhibitor gene. It brightens the agouti (ticked) areas of the coat. The effect is often patchy on the coat. Sunshine silver looks different from a silver with rufism; the nose leather is pinkish unlike that of a tabby cat. The red colour of a sunshine red tabbies and sunshine torties is brighter and the paws are lighter. The absence of pigment in the sunshine tabbies extends beyond the edges of the nose leather so they have no nose-liner and have whitish fur at the bottom of the nose.

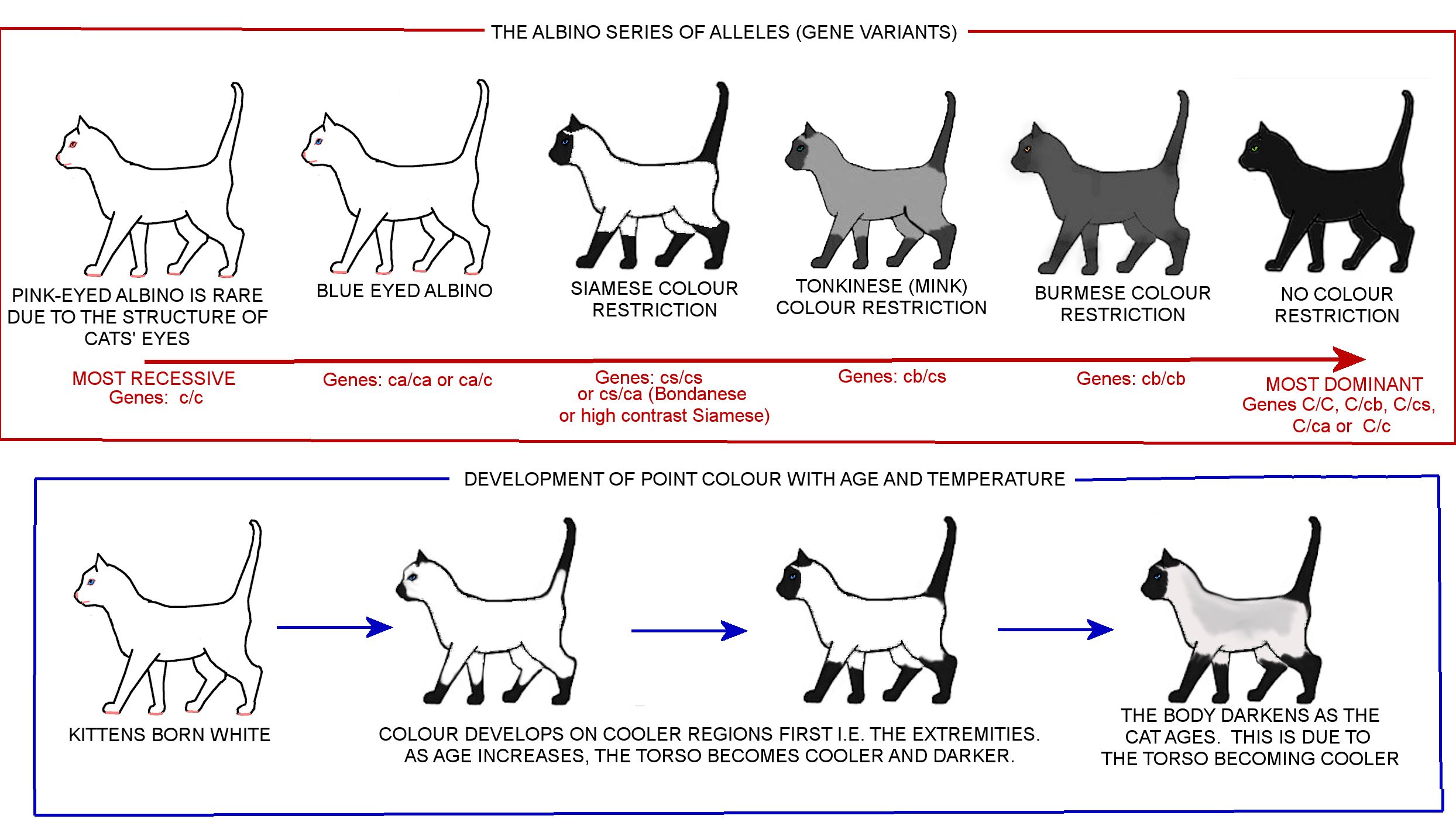

7. Colourpoints

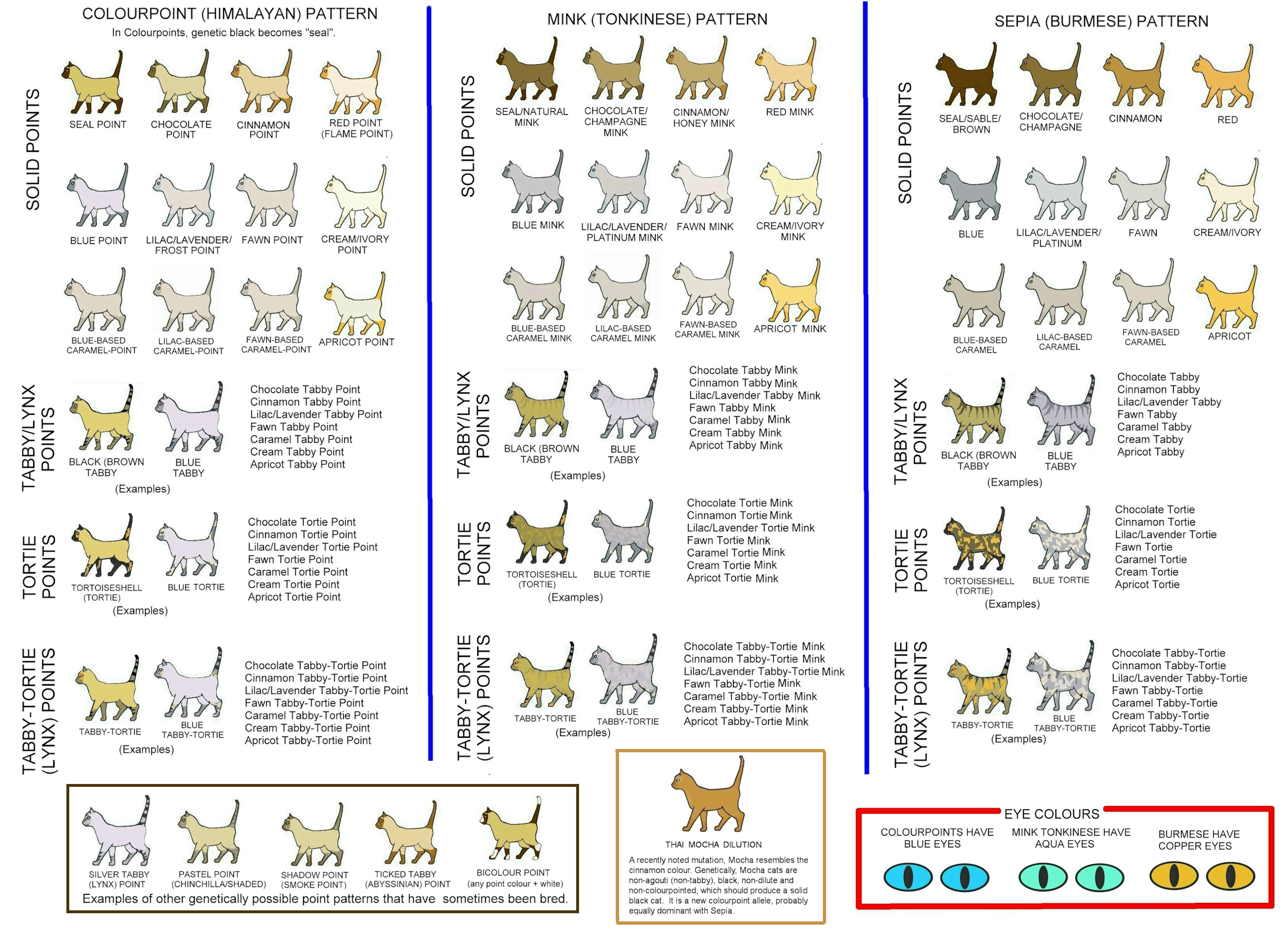

There are 3 levels of colourpointing seen in cats. These are all due to temperature dependent albinism genes that cause cooler parts of the body to develop darker pigment. The first is the familiar high-contrast "Siamese" pattern known to geneticists as colourpoint or Himalayan pattern. The second is the low-contrast Burmese colour restriction, often referred to as sepia pointing (because it was first seen in brown/sepia Burmese). Intermediate between these is the mink pattern (Tonkinese colour restriction) caused when the Siamese and Burmese colour restriction genes interact.

The points may be solid, tabby or tortie colours. With Siamese colour restriction the torso is a shade of cream or ivory although some cats show "breakthrough markings" especially as they age. With Burmese colour restriction, the torso is marked with a slightly paler version of the colour and pattern. With Mink, the level of colour/pattern displayed on the torso is intermediate between those extremes.

cat colours diagram chart



cat colours diagram chart

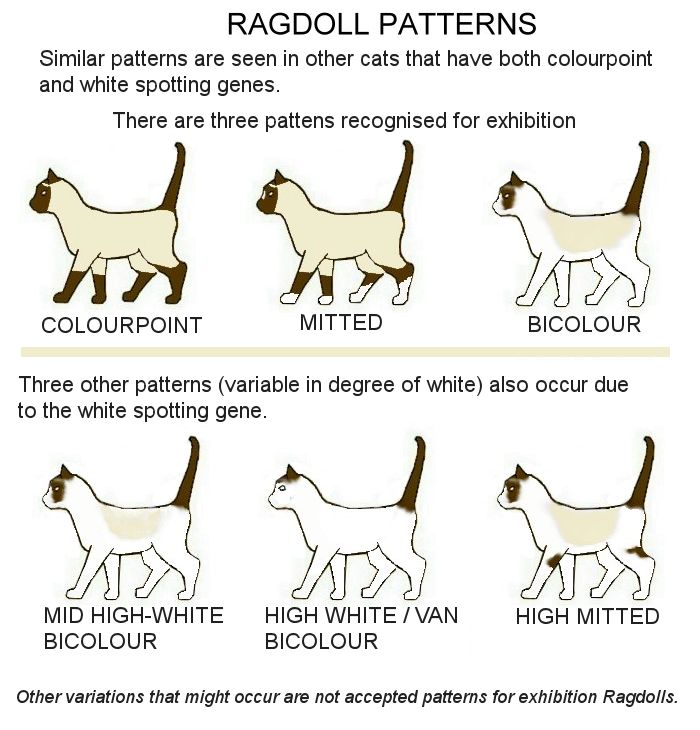

7a. Ragdoll & Bicolourpoints

Some breeds combine colourpointing (usually Siamese colour restriction) with the white spotting gene. Breeders generally prefer a low level of white spotting that does not wholly obscure the coloured points. Separate genes are believed to control the uniformly expressed white mitting in certain breeds.

cat colours diagram chart

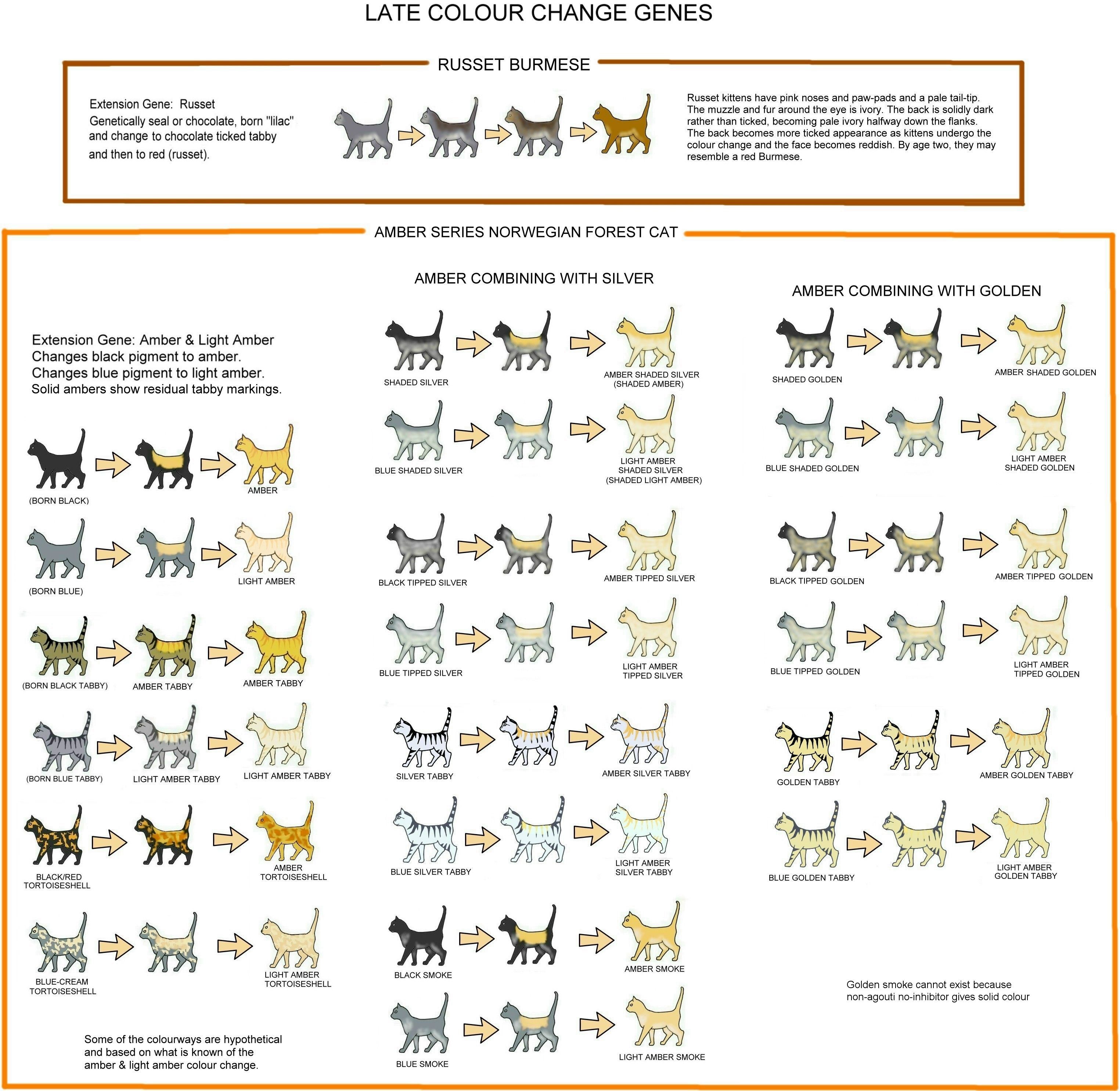

8. Non-Extension Gene: Amber and Russet

These two genes cause the eumelanin to fade, leaving behind reddish tones. Amber (in Norwegian Forest Cats) causes black to fade to amber, and blue to fade to light amber. The kittens are born black or blue and fade as they reach adulthood, starting with the dorsal region. Russet is found in the Burmese; kittens are born an unusual lilac/chocolate colour and eventually turn reddish. The progression of the colour change is depicted in the chart below.

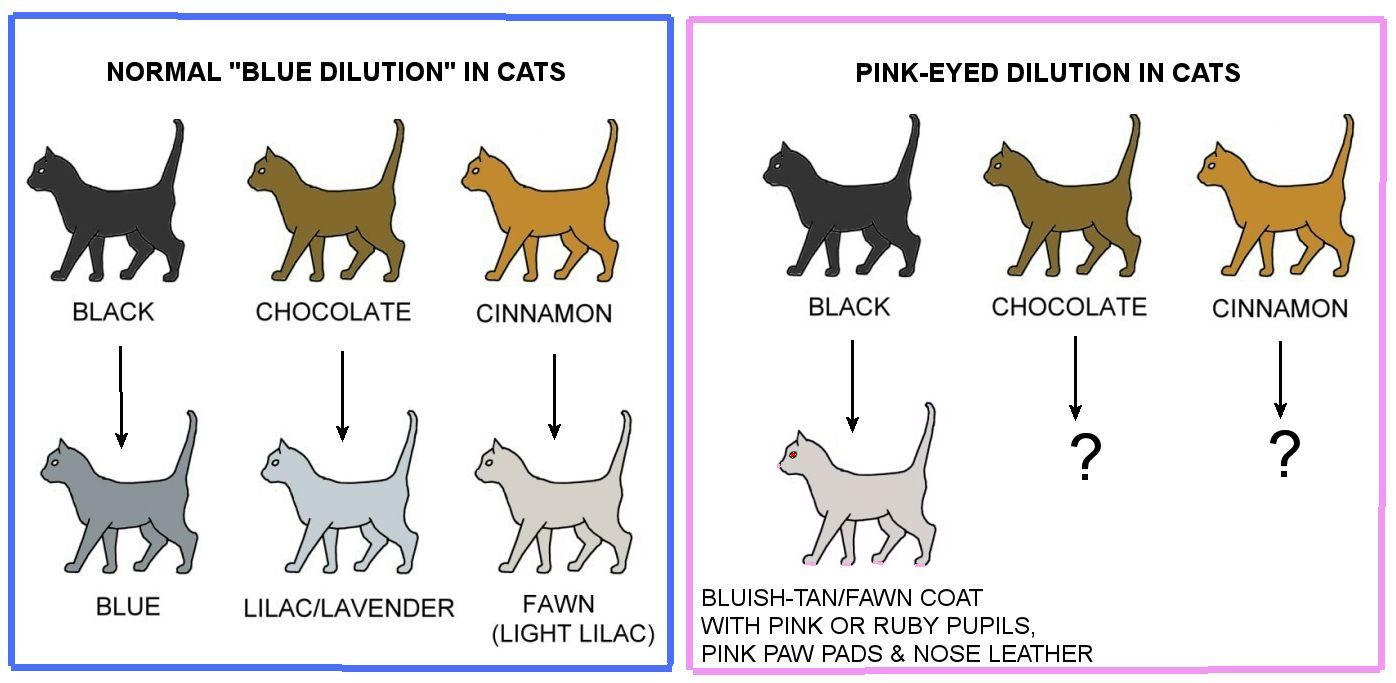

9. Pink-Eyed Dilution

Pink-eyed dilution was reported by NB Todd NB in 1961. "A pink-eyed dilution in the cat" (Journal of Heredity 52, pg 202). The usual type of dilution found in cats is blue dilution which turns black into grey. A second type of dilution seen in some mammals is "pink-eyed dilution" which gives a bluish-tan/fawn coat and also depigments the eye, giving a pink or ruby appearance. According to Todd, this has been reliably reported only once in cats when a pink-eyed female with a light tan coat was produced. None of her kittens survived so pink-eyed dilution in cats seemed to have been lost. In 2015, a pink-eyed Sphynx kitten of unidentifiable colour appeared in Australia. It matched the description of bluish-tan/fawn colour andhad gold irises with ruby red pupils. Genetic testing ruled out the known dilution and albinism genes.

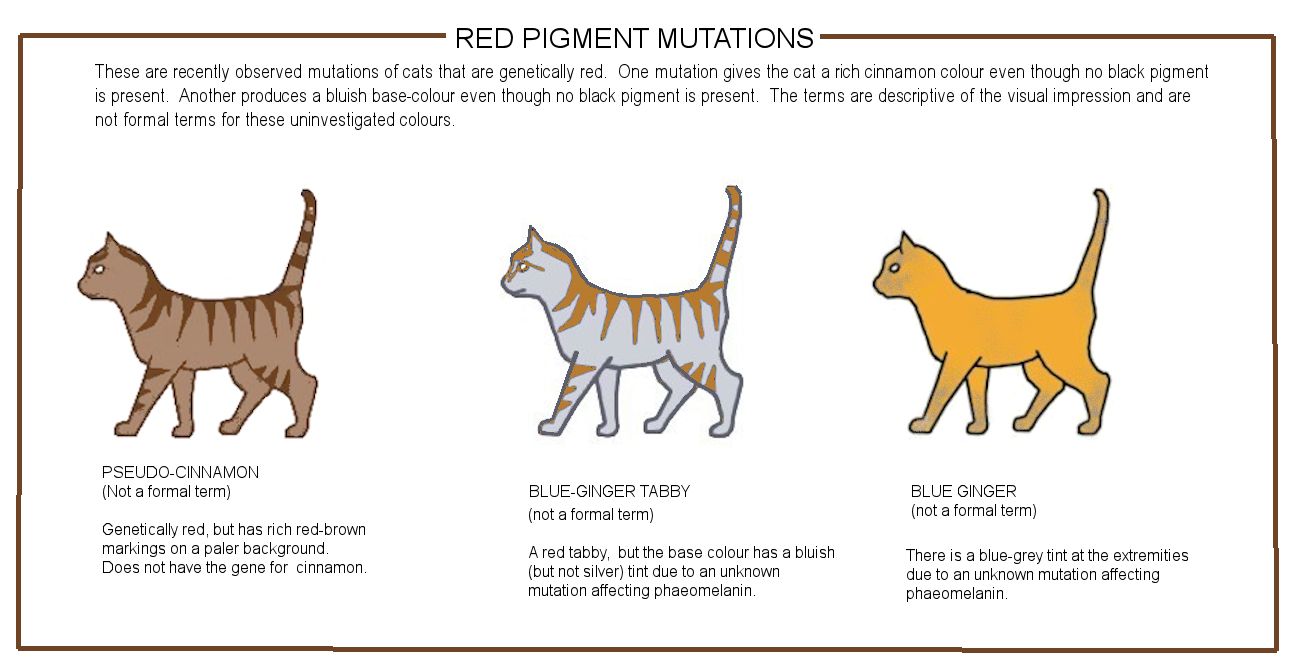

10. Recently Noted Mutations of Red Pigment

These colours are under investigation and may not be true mutations, just slight modifications of how known genes are being expressed visually. For now I'll use the term "mutation" in a very loose sense. All of these occur on cats that are genetically red. The colours visuallyb resemble eumelanin (black pigment) colours even though no black pigment is present. One mutation/modification turns red pigment into a rich cinnamon colour. Another turns the ground colour of red tabbies to a bluish/lilac colour. This may also be responsible for the bluish tones at the extremities of some red cats.

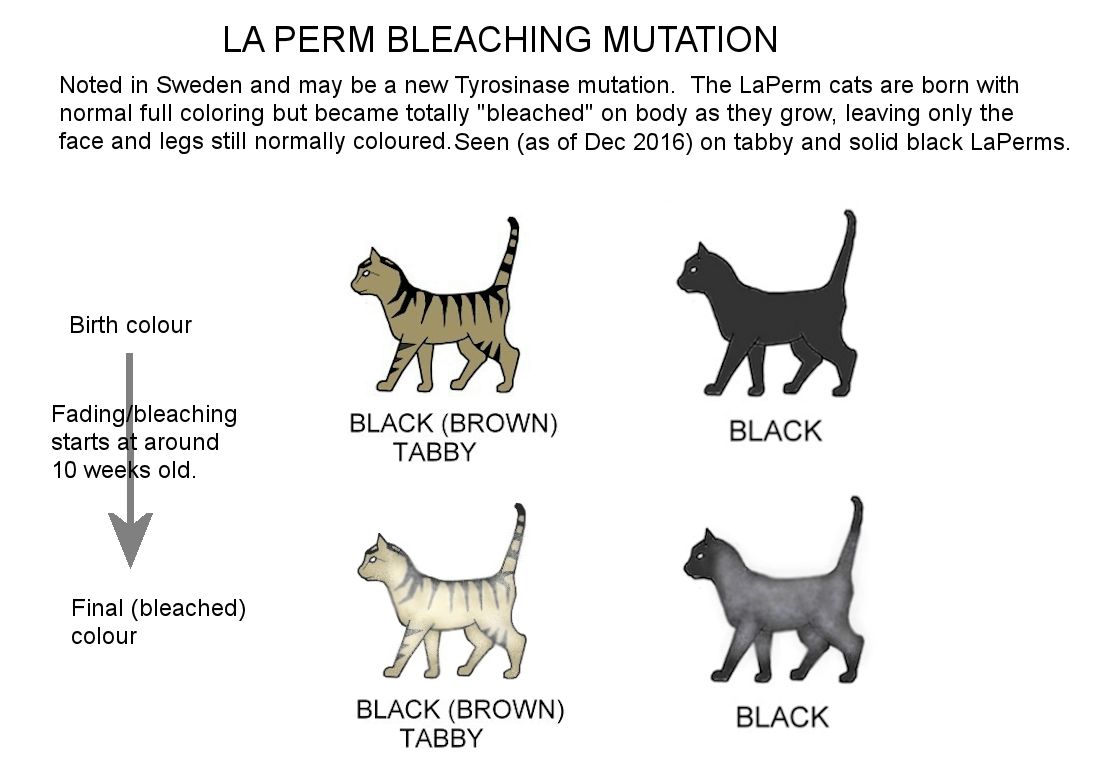

11. LaPerm Bleaching (Colur fade) Mutation

Noted in 2015 when some cats born with normal full coloring became totally "bleached" on the body as they grew, leaving only the face and legs still normally coloured. The colour fading began around 10 weeks of age and may be a new TYR (tyrosinase) mutation. The Karpati mutation and silver have been ruled out.

cat colours diagram chart

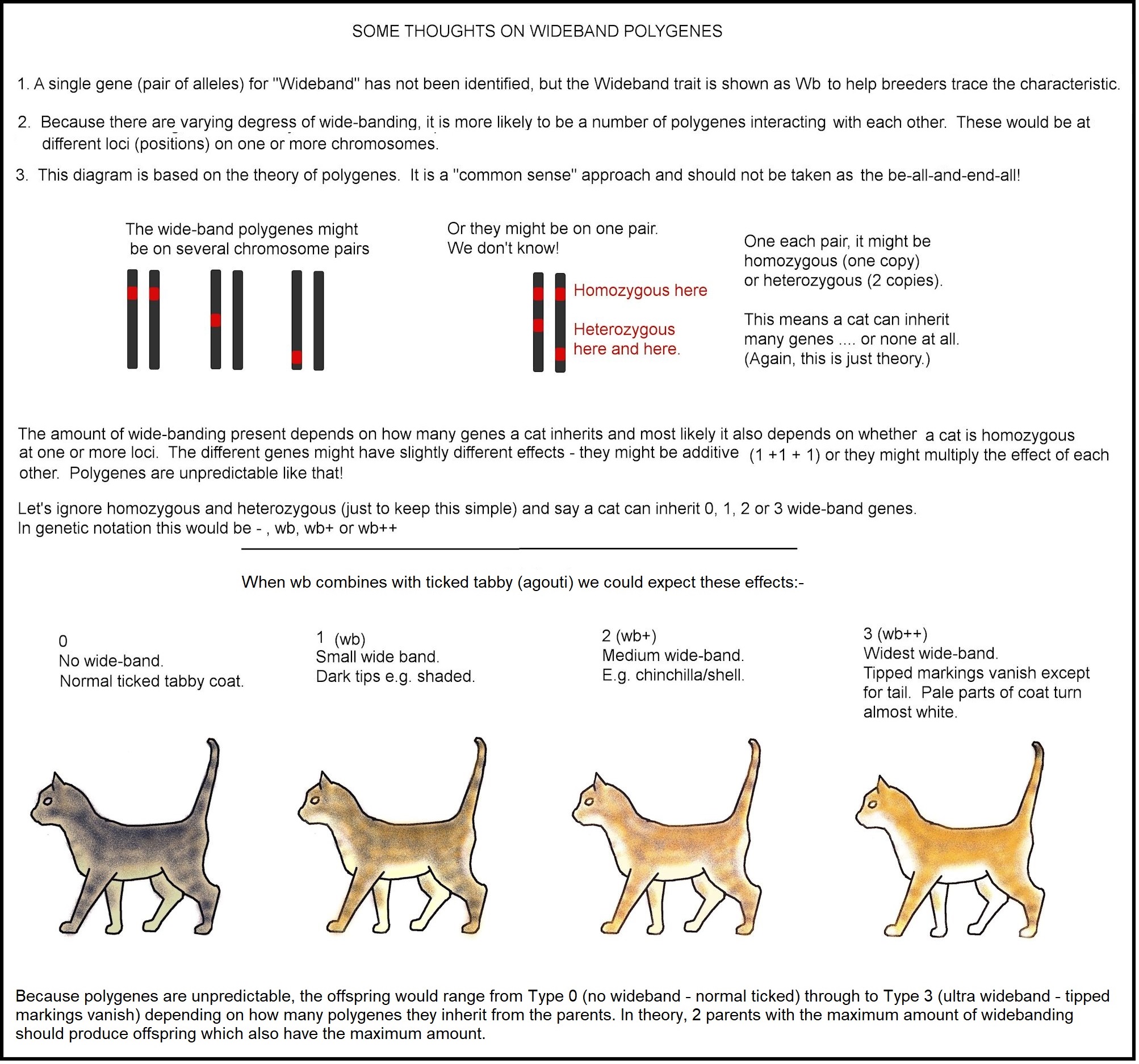

12. "Copper" (Ultra-Wide-Band) Phenotype in British Tipped Golden Shorthairs

The unofficial term "copper" was adopted by Linda Petersson Wahlqvist to describe Golden Shell (Golden Chinchilla) cats with white toes, white undersides, golden colour with the dark tips (e.g. black or blue) restricted to the tail tip and an absence of dark nose-liner. These phenotype deviates from the standard for tipped cats, but is becoming prevalent in Russia and in some German lines of British Golden Shorthairs.

cat coat colours wideband polygenes

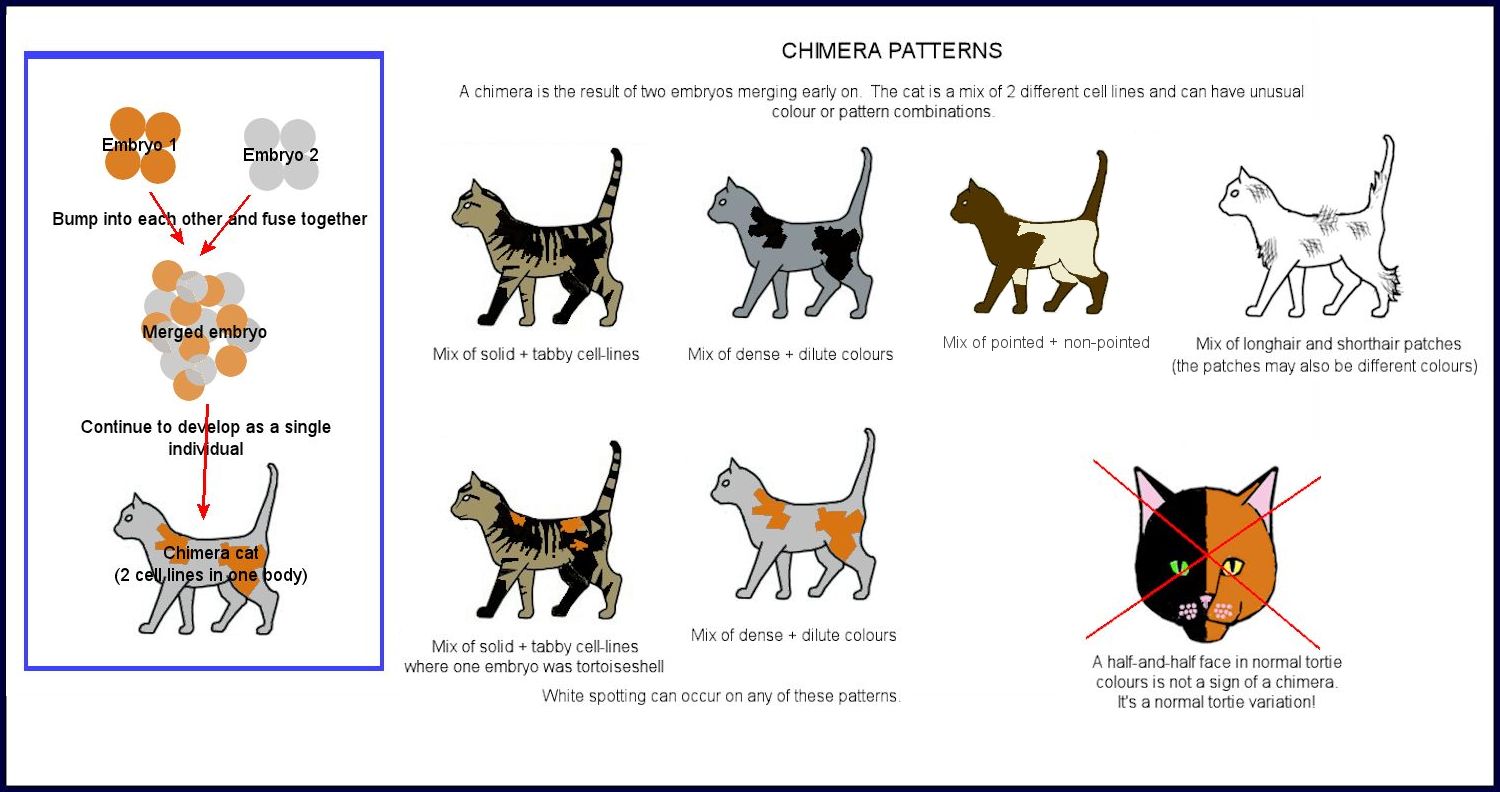

13. Chimeras (Cats Resulting from Fused Embryos) and Somatic Mutations

cat colours diagram chart

cat colours diagram chart

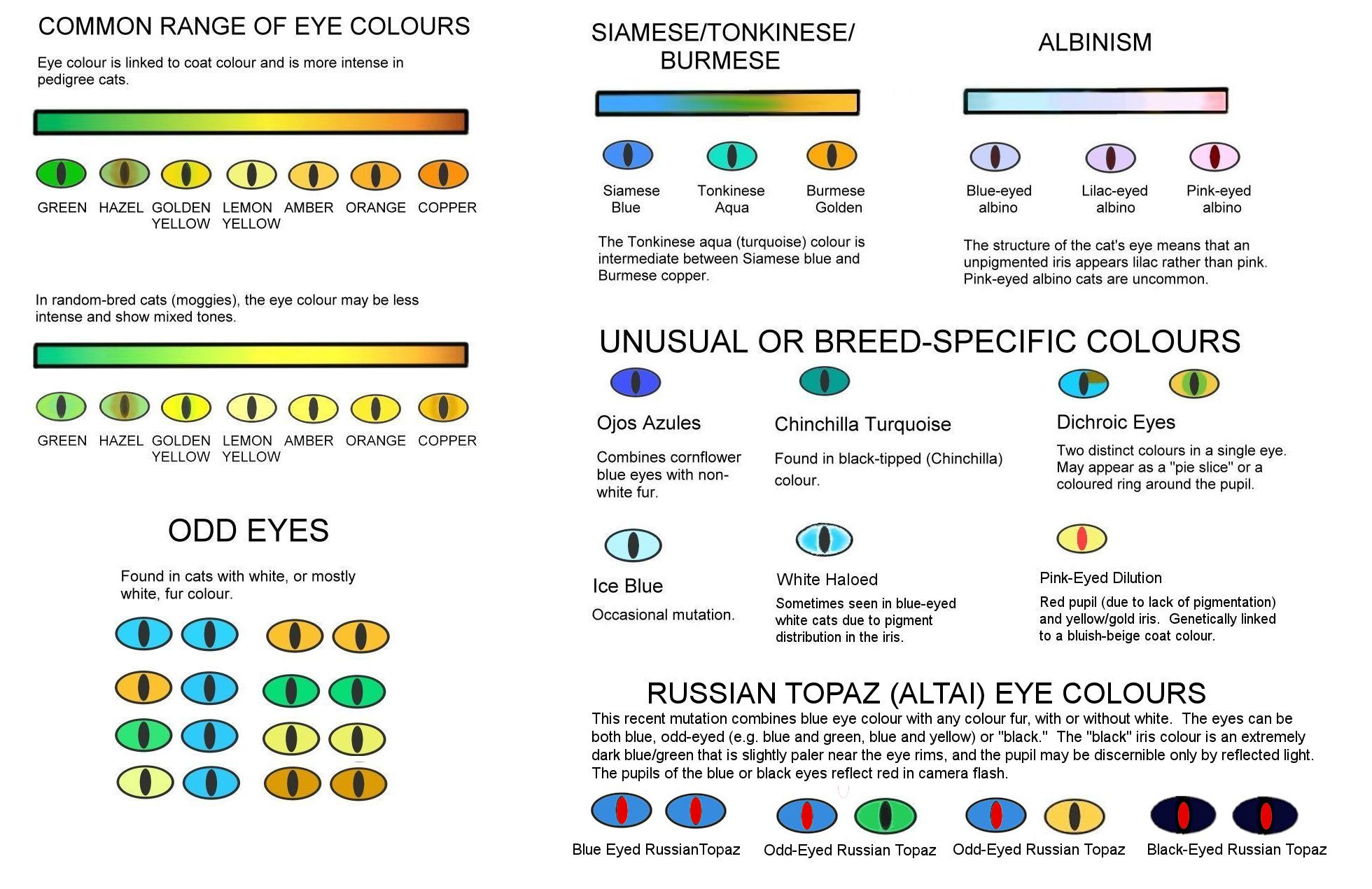

14. Eye Colours

Eye colours are associated with coat colours. Random-bred cats have the widest range of eye colours while the eye colours in pedigree breeds have been restricted by selective breeding. In other breeds, the gene that causes the colour/pattern also affects the eye colour e.g. blue eyes in colourpointed (Siamese pattern) cats. Blue eyes or odd eyes are mostly associated with solid white cats or cats with a large amount of white on the face. A Russian breed called the Topaz has blue eyes or odd eyes that are independent of coat colour e.g. blue-eyed solid black. In addition, some Russian Topaz cats have such dark eye colour that they appear black and the pupil is only discernible using reflected light (it reflects red).

cat colours diagram chart

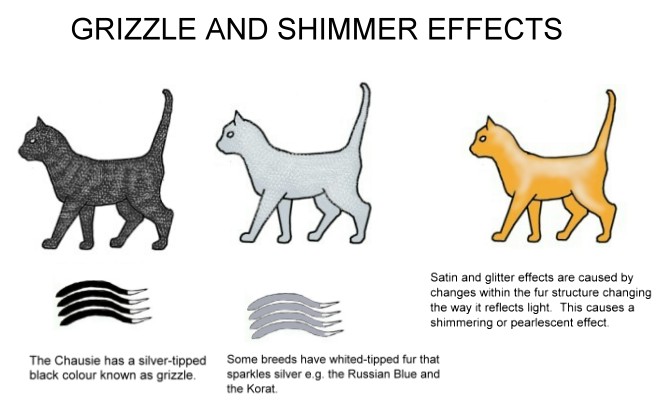

15. Shimmering Effects

Shimmering effects either affect the structure of the fur or are due to white or translucent tipping of the hairs. Effects seen to date are grizzle (in Chausies), silver tipping (in Korat and Russian Blue) and Satin (in Tennessee Rex). Sparkling effects are also found in the Bengal.

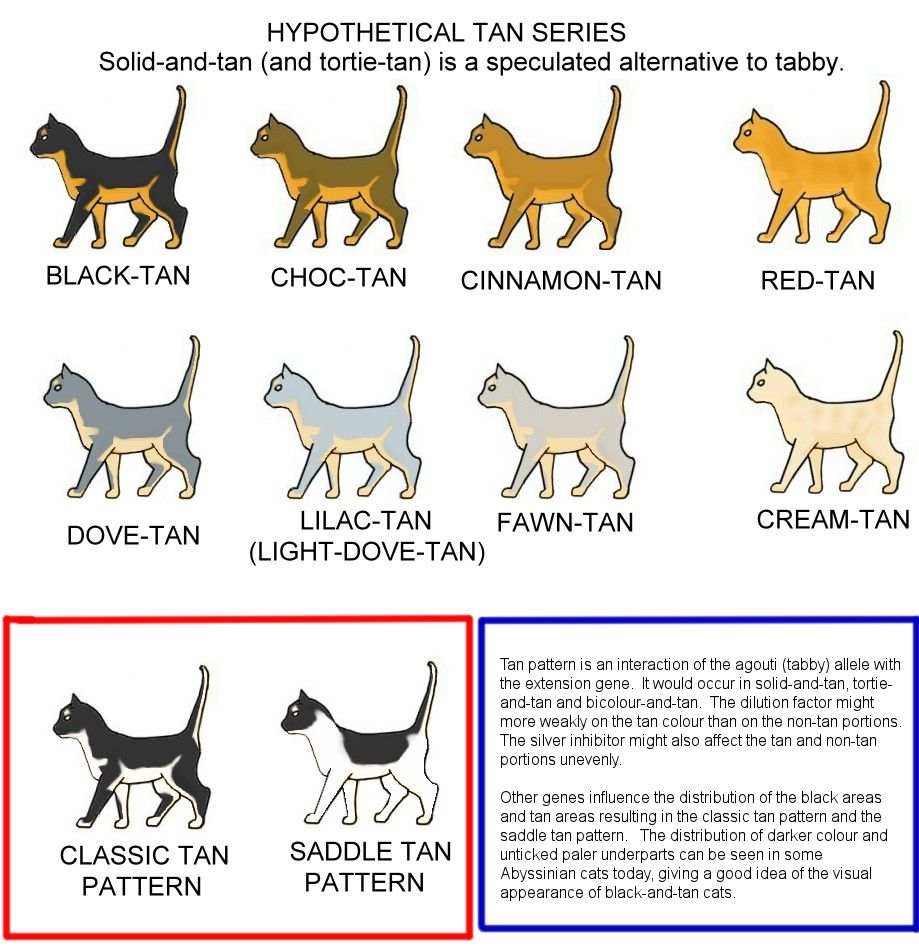

16. Posited Tan Series

This gene has not yet been seen in cats, but in dogs it is an allele (alternative gene) at the agouti locus, while in rabbits it is a combination of agouti and extension genes. This chart is a suggestion of how colour-and-tan cats would look if the mutation occurred. Theoretically it could be combined with white spotting, colourpointing and silver/golden series. The possibility of tabby-and-tan patterns would depend on how the tan gene, if it occurred in cats, interacted with existing genes.

cat colours diagram chart

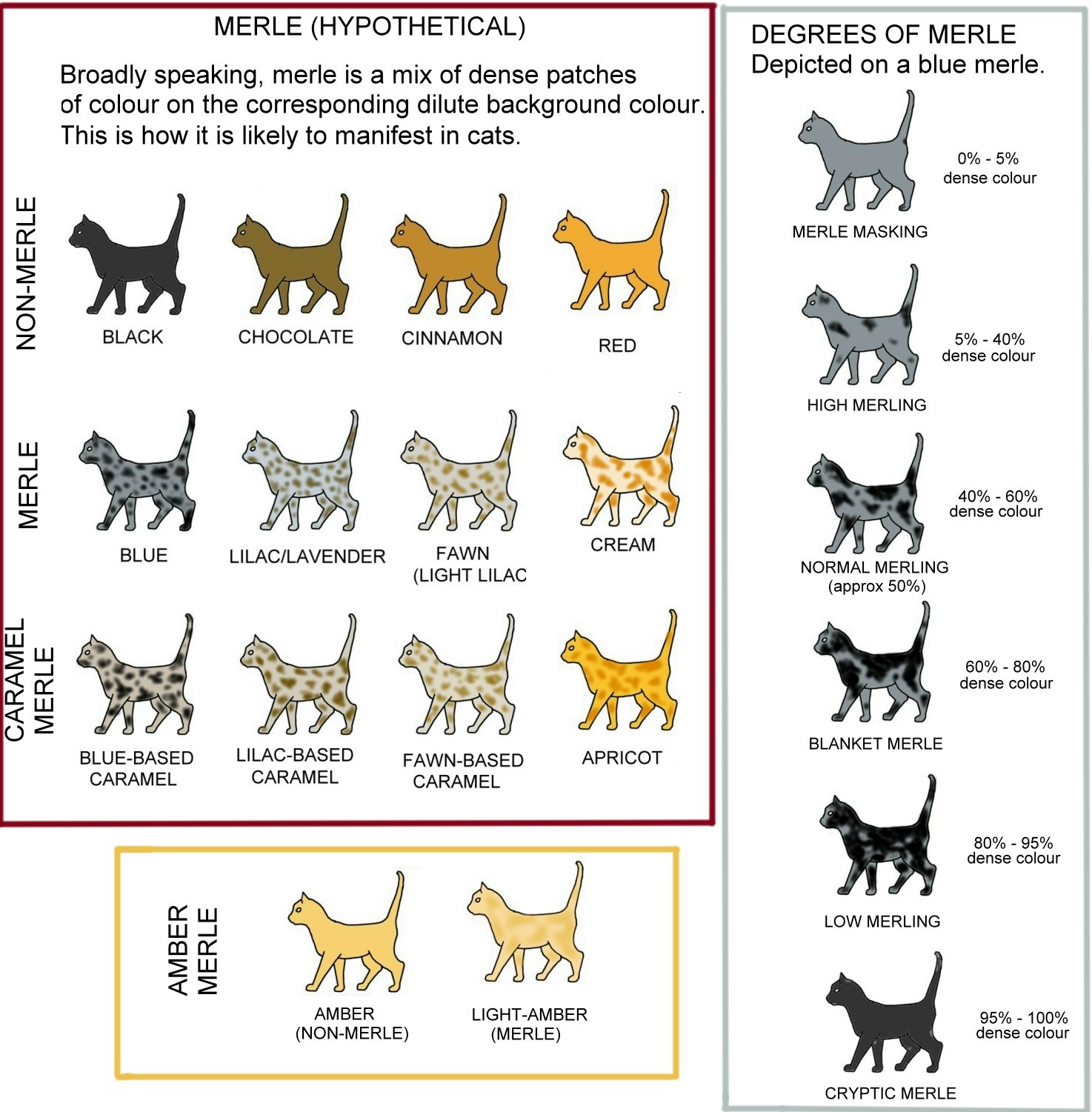

17. Posited Merle Series

This gene has not yet been seen in cats, but is found in dogs. Broadly speaking it manifests as patches of dense colour on the equivalent dilute e.g. black patches on a blue background, black patches on caramel, red patches on cream. This is different from tortie where the patches are a mix of a black-based colour with a red-based colour. The only instances of this phenotype in cats have been chimeras where one cell line has the dense colour (e.g. black) and the other has the corresponding dilute colour (e.g. blue). Theoretically it could combine with existing colours and patterns, but would only show to good effect on dilute-coated cats e.g. a blue/cream tortie with black patches, or a lavender (lilac) tabby with chocolate patches. Theoretically these could also be combined white spotting, colourpointing and silver/golden series. The chart shows how merle might manifest in cats should the mutation occur.

cat colours diagram chart

18. Imported Colours/Patterns

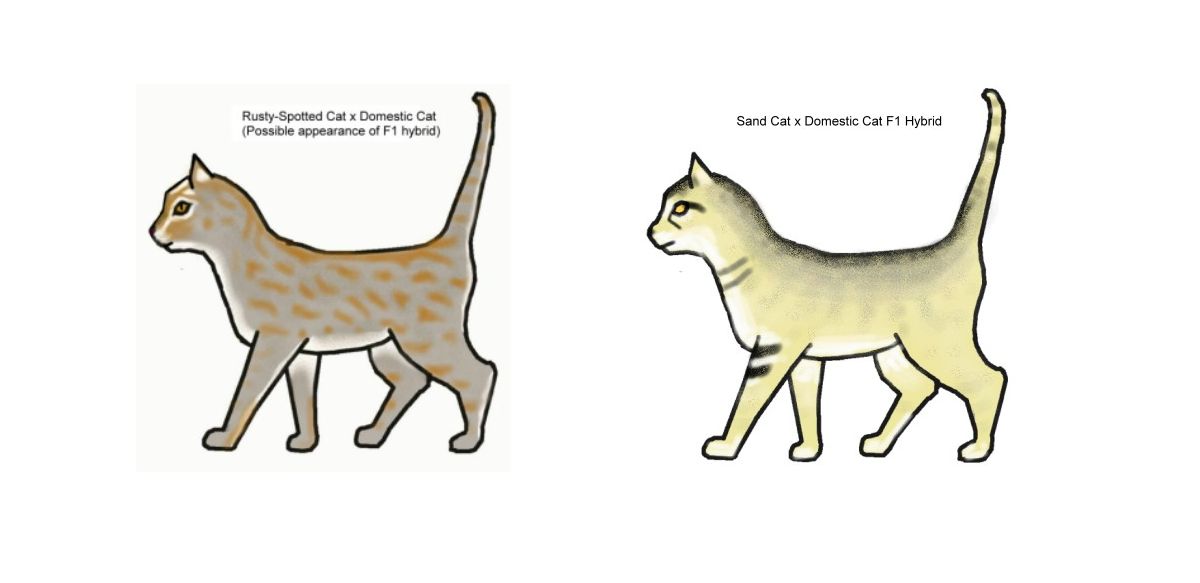

Some colours and patterns have been imported from a wildcat ancestor. Some of these have already been detailed e.g. charcoal pattern Bengals, grizzle pattern Chausies and the rosetted and marble/clouded pattern seen in several hybrids breeds. The following are 2 novel patterns derived from wildcat x domestic cat crosses. The Rusty Spotted Cat hybrid illustration is based on descriptions of purported hybrids. The Sand Cat hybrid illustration is based on photographs of F1 kittens.

cat colours diagram chart

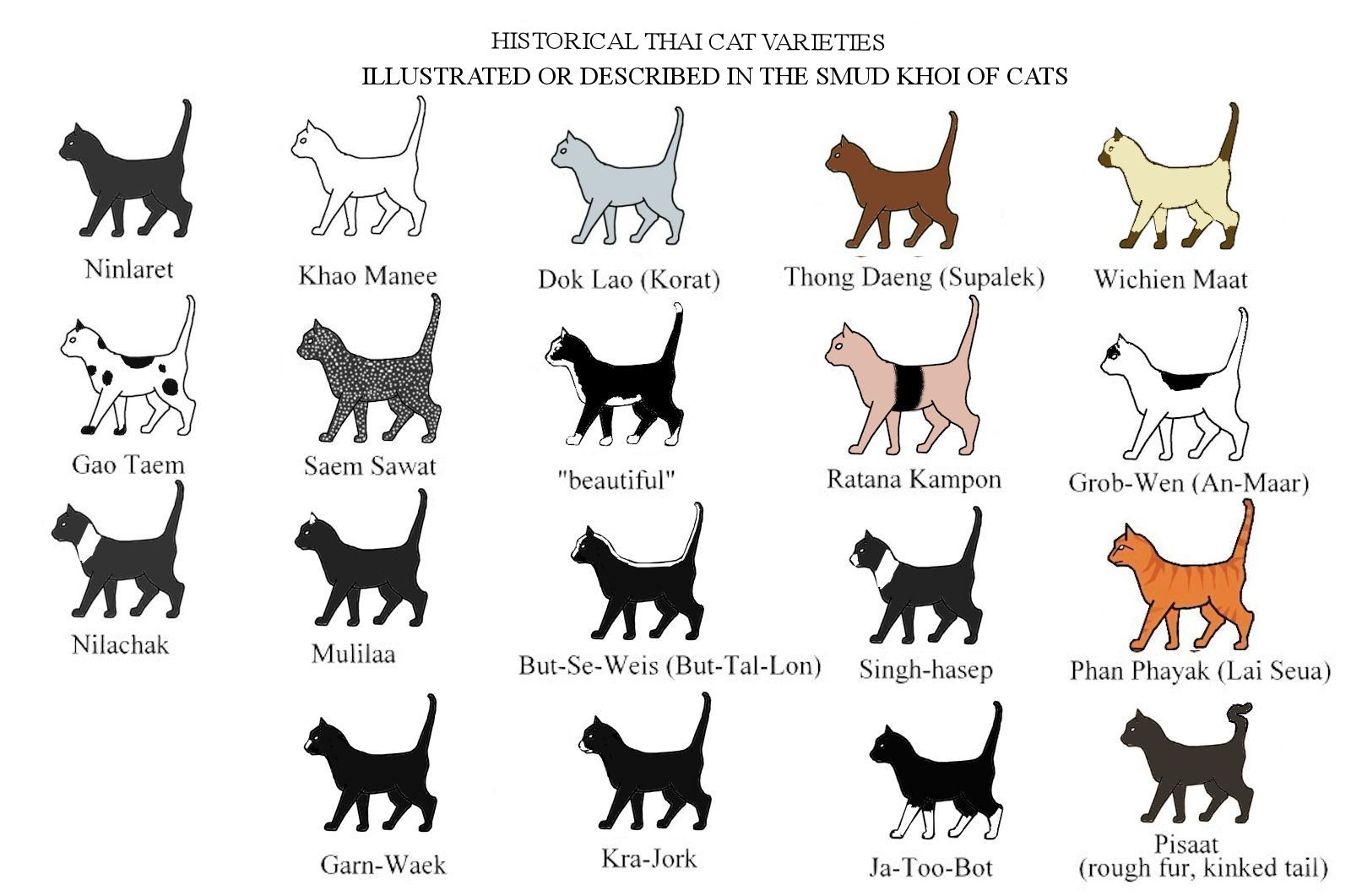

19. Colours Described in Historical Thai Texts

Several of these varieties are now being conserved, while others have not been observed in modern Thai cats. They are considered colour variations of the Maew Boran (the Thai Natural Breed) and not separate breeds.

cat colours diagram chart

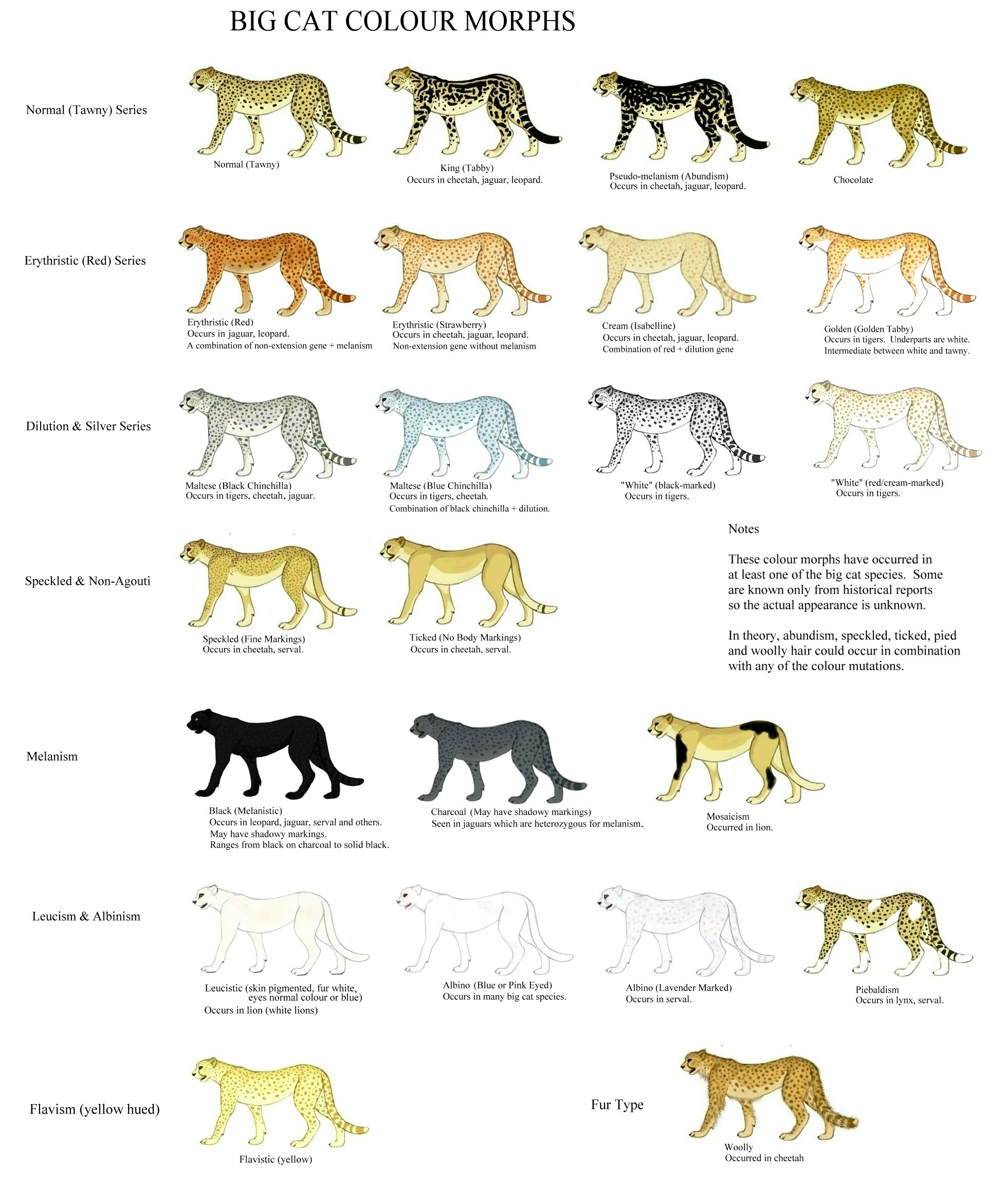

20. Colour pattern Mutations in Big Cats

These have been depicted on a spotted big cat as this is the most common pattern, however a number of these mutations occur on striped, rosetted or clouded patterns as noted on the chart. This chart is included for comparison and general interest.

cat colours diagram chart
